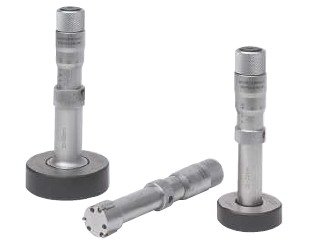

ANALOGUE BORE GAUGE/ INSIDE MICROMETER




:

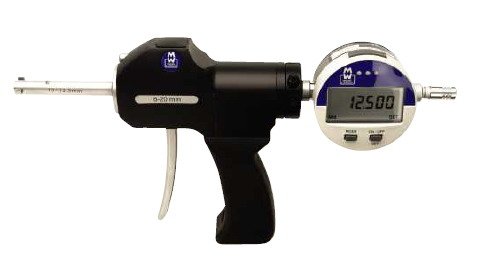

DIGITAL BORE GAUGE/ INSIDE MICROMETER


A B
C D



:

DIAL BORE GAGE
Code Range Depth Dial indicator bezel Anvil type
IS12322-10 6-10mm 40mm 42mm A
IS12322-18 10-18mm 100mm 42mm B
IS12322-35 18-35mm 150mm 58mm C
IS12322-50 35-50mm 150mm 58mm D
IS12322-100 50-100mm 150mm 58mm D
IS12322-160 50-160mm 150mm 58mm D
IS12322-250 160-250mm 250mm 58mm D
IS12322-450 250-450mm 250mm 58mm D
Code Range Depth Dial indicator bezel Anvil type
IS12323-04 0.24-0.4" 1.57" 2.28" A
IS12323-07 0.4-0.7" 4" 2.28" B
IS12323-1.5 0.7-1.5" 6" 2.28" C
IS12323-2.4 1.4-2.4" 6" 2.28" D
IS12323-4 2-4" 6" 2.28" D
IS12323-6 2-6" 6" 2.28" D
IS12323-10 6-10" 16" 2.28" D
IS12323-16 10-16" 16" 2.28" D
  • Dial indicator graduation: metric 0.01mm,
    imperial 0.0005"(optional: 0.001")
  • Dial indicator range: metric0-3mm, shockproof
    imperial0-0.25"
  • Dial indicator with protection cover
  • Ceramic contact moving tip and anvils (optional carbide moving tip and anvils) except moving tip and anvils of 6-10mm, moving tip of 10-18mm, moving tip of 18-35mm
  • Insert type anvils for bore gages over 35mm
  • Packed in blow mould case or wooden box

  •



    Screw type anvil

    :

    DIAL BORE GAGE
    Code Range Depth Dial indicator
    IS12823-35 18-35mm 125mm 58mm
    IS12823-50 35-50mm 150mm 58mm
    IS12823-100 50-100mm 150mm 58mm
    IS12823-160 50-160mm 150mm 58mm
    IS12823-250 100-250mm 400mm 58mm
    IS12823-251 160-250mm 400mm 58mm
    IS12823-450 250-450mm 400mm 58mm
    Code Range Depth Dial indicator bezel
    IS12824-1.5 0.7-1.5" 5" 2.28"
    IS12824-2.4 1.4-2.4" 6" 2.28"
    IS12824-4 2-4" 6" 2.28"
    IS12824-6 2-6" 6" 2.28"
    IS12824-10 6-10" 16" 2.28"
    IS12824-16 10-16" 16" 2.28"
  • Dial indicator graduation: metric0.01mm,
    imperial0.0005"(optional: 0.001")
  • Dial indicator range: metric0-3mm, shockproof
    imperial0-0.25"
  • Dial indicator with protection cover
  • Ceramic contact moving tip and anvils (optional: carbide moving tip and anvils) except moving tip of 18-35mm
  • Screw type anvils
  • Packed in blow mould case or wooden box

  •

    Insert type anvil



    :

    LONG DEPTH DIAL BORE GAGE
    Code Range Depth
    IS12821-50 35-50mm 1m
    IS12821-100 50-100mm 1m
    IS12821-160 50-160mm 1m
    IS12821-250 160-250mm 1m
    IS12821-450 250-450mm 1m
    Code Range Depth
    IS12822-24 1.4-2.4" 39.4"
    IS12822-4 2-4" 39.4"
    IS12822-6 2-6" 39.4"
    IS12822-10 6-10" 39.4"
    IS12822-16 10-16" 39.4"
  • Optional depth:metric0.5m, 1.5m, 2m,
    imperial19.7", 59.1", 78.7"
  • Dial indicator graduation:metric0.01mm
    imperial0.005" (optional: 0.001")
  • Dial indicator range: metric0-3mm, shockproof, with protection cover imperial 0-25", with protection cover
  • Ceramic contact tips (optional: carbide tips)
  • Insert type anvils
  • Packed in wooden box
  •
