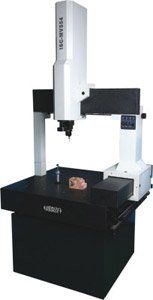

MANUAL COORDINATE MEASURING MACHINE
:
:INSIZE
:ISC-MV554
´ :
Technical specification
Operation manual
Structure moving bridge
Guide method air bearing
Measuring range X=500mm, Y=500mm, Z=400mm
Accuracy single axis MPEE1=(3.0+L/250)?m (L is the overall measuring length, unit: mm)
space MPEE=(3.5+L/250)?m (L is the overall measuring length, unit: mm)
Digital measuring system RENISHAW linear measuring system
Probing system RENISHAW probe system
Resolution 0.5?m
Max. measuring speed 300mm/s
Workpiece loading 200kg
Power supply AC 220V 50HZ(standard)
AC 110V 60HZ(option)
Air supply 0.4 - 0.5Mpa
Air consumption 120L/min(0.4Mpa)
Working circumstance temperature: (20?2)?
humidity: 55%~65%
Dimension 1000?1100?2200mm
Weight 700kg
Standard delivery
Main unit 1pc.
Base 1pc.
Probing system MH20i with MSI shank and TP 20 module 1pc.
styli: PS9R 1pc.
styli: PS8R 1pc.
styli: PS1R 1pc.
extension: SE4 1pc.
extension: SE5 1pc.
styli centre: SC2 1pc.
styli knuckle: SK2 1pc.
ISC-CMS software 1pc.
Computer 1pc.
Calibration ball set 1pc.
Fuse 3pcs
Power cable 1pc.
Handle 4pcs
Adjustable feet 11pcs
Installation & users manual 1pc.
´ :
  • Moving-bridge structure provides excellent stability
  • Smooth operation because of the high-precision air bearings and light weight moving parts
  • No obstruction on the measuring table permits easy workpiece handling
  • Continuous fine feed over the entire measuring range
