VIDEO MEASURING SYSTEM
:
:INSIZE

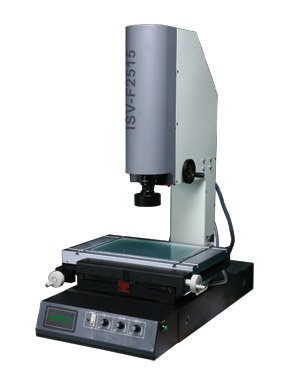

: ISV- F1510,ISV-F2010,ISV-F2515,ISV-F3020,ISV-F4030
´ :
´ :
Technical specification
Model ISV- F1510 ISV-F2010 ISV-F2515 ISV-F3020 ISV-F4030
Table metal table size(mm) 354?228 404?228 450?280 500?330 606?466
glass plate size(mm) 210?160 260?160 306?196 350?280 450?350
X-Y travel(mm) 150?100 200?100 250?150 300?200 400?300
Z travel
150mm
working distance
92mm
resolution of X, Y, Z axis
0.5 ?m
accuracy of X, Y axis
?(3+L/75) ?m (L is the overall measuring length, unit: mm)
Video system camera: 1/2? color CCD
objective: 0.7 X - 4.5X
total magnification: 30X - 190X
view object: 10.6mm - 1.6mm
reflection and transmission illumination: adjustable LED
Proposed stand for unit load>350kg, dimension: 1000(L) ?600(W) ?500(H)mm
Power supply AC 220V 50HZ(standard)
AC 110V 60HZ(option)
Dimension: L?W?H (mm)
540?560?850
760?600?900
970?670?940
Weight(kg) 100 110 120 140 240
Tube 1X(standard) 0.5X(option) Working distance (mm)
Objective 0.7X - 4.5X 0.7X - 4.5X
Auxiliary objective magnification view field(mm) magnification view field(mm)
0.5X(option) 15X - 95X 20 - 3.2 7.5X - 48X 40 - 6.4 175
Standard 30X - 190X 10.6 - 1.6 15X - 95X 20 - 3.2 92
2X(option) 60X - 380X 5 - 0.8 30X - 190X 10 - 1.6 36
Standard delivery
Main unit 1pc.
ISP-PR CD 1pc.
ISP-PR encrypt lock 1pc.
ISP-PR users manual 1pc.
Video card 1pc.
RS232 cable 1pc.
USB cable 1pc.
"S" cable 1pc.
Color CCD camera 1pc.
0.7X~4.5X objective 1pc.
Foot-switch 1pc.
Mini-printer 1pc.
Anti-dust cover 1pc.
Power cable 1pc.
Fuse 5pcs
Adjustable feet 4pcs
Standard block 1pc.
Cross generator 1pc.
Installation & users manual 1pc.
