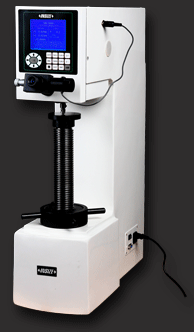

DIGITAL BRINELL HARDNESS TESTER

:
:INSIZE
:ISH-AB3000
´ :
  • Find the edge of indentation from the microscope, directly read the hardness value from screen
  • Can be automatically converted to 16 other hardness values
  • Test result can be printed in the built-in printer or transferred through RS232 data output for storage or printing
  • No weights, electronic auto loading

´ :

Technical specification

Measuring range 8~650HBW
Test force 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf
Test cycle automatic
Max. test height 225mm
Max. throat 135mm
Micrometer eyepiece Magnification 20X, graduation 0.00125mm
Data output built-in printer and RS232C
Power supply AC 220V, 50Hz(standard)
AC 110V, 60Hz(option)
Dimension 560X220X800mm
Weight 130Kg
Standard delivery
Main unit 1pc.
Micrometer eyepiece 1pc.
Power cable 1pc.
RS232C cable 1pc.
Built-in Printer 1pc.
Printer paper 1roll
Large flat anvil 1pc.
Small flat anvil 1pc.
V-type anvil 1pc.
Steel ball indenter(?2.5mm, ?5mm, ?10mm) 1pc. each
Spare steel ball(?2.5mm, ?5mm, ?10mm) 1pc. each
Brinell test block 2pcs
Fuse 3pcs
Screwdriver 2pcs
Anti-dust cover 1pc.
Installation & manual 1pc.
