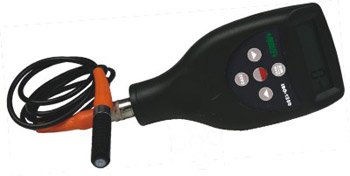

MEASURING COATING THICKNESS GAUGE
:
:INSIZE
:ISO-1250
´ :

´

  • Application: measure the thickness of non-magnetic coating layer on magnetic material and measure the thickness of non-conductive coating layer onnon-ferrous material
  • Technical specification
    Operating principle magnetic induction (F) & eddy current (N)
    Measuring range 0~1250?m(default range)
    Resolution 0.1?m /1?m
    Accuracy ?1~3% n (n is measuring thickness) or ?2.5?m
    Min. workpiece radius F: convex 1.5mm/concave 25mm
    N: convex 3mm/concave 50mm
    Min. measuring area 6mm
    Min. thickness of substrate material 0.3mm
    Metric/inch convertible
    Power supply 4?1.5V AAA batteries
    Dimension 126?65?27mm
    Weight 81g (batteries not included)
    Standard delivery
    Main unit 1pc.
    F type probe 1pc.
    N type probe 1pc.
    F calibration base 1pc.
    N calibration base 1pc.
    Calibration foil set 1set(4 foils)
    1.5V AAA battery 4pcs
    Instruction manual 1pc.
    Carrying case 1pc.
    Optional accessories
    Cable & software for RS232C
