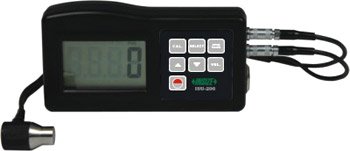

ULTRASONIC THICKNESS GAUGE
:
:INSIZE
:ISU-200
´ :

´

  • Application: used for measuring thickness and corrosion thickness of pressure vessels, chemical equipments, boilers, oil storage tanks, etc.
  • Technical specification
    Measuring range 1.2~200mm (0.05~8inch)
    Operating principle ultrasonic
    Material measured any hard materials including steel, cast iron, aluminum, copper, brass, zinc, quartz glass, polyethylene, PVC, cast iron, etc.
    Sound velocity 500~9000m/s
    Resolution 0.1mm
    Accuracy ?(0.5%n+0.1) n is the measuring thickness
    Output RS-232C interface
    Power supply 4?1.5V AAA batteries
    Operating conditions temperature 0~40? humidity<90%RH
    Dimension 120 x 62 x 30mm
    Weight 208g (batteries not included)
    Standard delivery
    Main unit 1pc.
    Calibration block 1pc.
    5M?10 transducer 1pc.
    Couplant 1 bottle
    1.5V AAA Battery 4pcs
    Instruction manual 1pc.
    Carrying case 1pc.
    Optional accessories
    6M?6 small diameter transducer measuring range(steel): 1.0~50.0mm
    operating temperature: -10?~+60?
    5M?12 high temperature transducer measuring range(steel): 1.0~225.0mm(normal temperature)
    measuring range(steel): 4.0~100.0mm(high temperature)
    operating temperature: -10?~+300?
    Cable & software for RS232C interface
