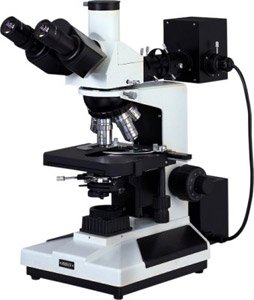

METALLURGICAL MICROSCOPE
:
:INSIZE
:ISM-M600
´ :
´ :
Technical specification
Total magnification 600X
Oculars WF10X
Objective PL5X, PL10X, PL20X, PL40X, PL60X
Illumination incident& transmitted light, adjustable control
Stage double layer mechanical
size 160x140mm, range: 75mmx50mm
Power supply AC 220V, 50Hz(standard)
AC 110V, 60Hz(option)
Standard delivery Optional accessories
Main unit 1pc.
Adjustable aperture 1pc.
Polarizer 1pc.
Transformer 1pc.
Filter(yellow, blue, green, frosted) 1pc. each
Fuse 1pc.
Lamp( 6V, 20W) 2pcs
Anti-dust cover 1pc.
Power cable 1pc.
Manual 1pc.
Oculars WF16X, dividing 10X (0.1mm/div.)
Objective PL50X, PL80X, PL100X
Digital camera ISM-D130
