MZ2 VIDEO ZOOM MICROSCOPE |
|
รหัส :
ยี่ห้อ :
รุ่น :MZ201101 Micro Zoom Body
รายละเอียดย่อ :
? A newly upgraded version of the Video Zoom Microscope
? High resolution and clear image
? The design is based on infinite optical system
|
|
MZ Video Zoom Microscope Diagram
|

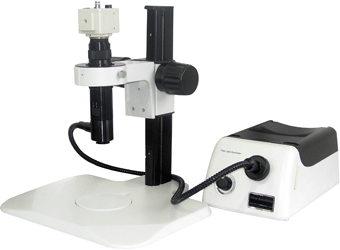

MZ2-200-CS-A Video Zoom Microscope
Includes: MZ201101 0.8-5X Zoom Body, MZ202102 0.5X Coupler, MZ203104 1X Objective Lens, MZ205101 Coaxial Illuminator, MA221101 76mm Track Stand, MA256103 45/76mm Donut MA311101
Fiber Optic Illuminator, MA323201 Single Pipe Light Guide, GP020101 1/3" Color CCD Camera, GP070101 12V Power Supply and GP080101 BNC-BNC Video Cable.
|
Optical Datasheet (Based on 14" Monitor and 1/3" CCD Camera)
Objective
Lens |
Working
Distance
(mm) |
Couplers |
| 0.3X |
0.5X |
1.0X |
1.5X |
2.0X |
| Mag. |
FOV (mm) |
Mag. |
FOV(mm) |
Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
| 0.5X |
175 |
6.85X-42.87X |
50-8 |
11.43X-71.4X |
30-4.8 |
22.86X-142.9X |
15-2.4 |
34.3X-214.37X |
10-1.6 |
47.4X-296.3X |
7.5-1.2 |
| 0.75X |
115 |
10.29X-64.31X |
33.33-5.33 |
17.15X-107.18X |
20-3.2 |
34.3X-214.37X |
10-1.6 |
51.45X-321.56X |
6.66-1.06 |
71.1X-444.5X |
5-0.8 |
| 1.0X? |
82 |
13.7X-85.75X |
25-4 |
22.86X-142.91X |
15-2.4 |
45.73X-285.83X |
7.5-1.2 |
68.6X-428.75X |
5-0.8 |
94.8X-592.7X |
3.75-0.6 |
| 2.0X |
35 |
27.44X-171.50X |
12.5-2 |
45.73X-285.83X |
7.5-1.2 |
91.46X-571.67X |
3.75-0.6 |
137.2X-857.50X |
2.5-0.4 |
189.7X-1185.3X |
1.875-0.3 |
|
|
Application
The zoom body system of MZ Video Zoom Microscope is designed by using a four-piece glass mechanical compensation structure to achieve resolution and clear image. When the MZ zoom with detents is used in a measuring system, magnification calibration is needed.
|
| Picture Preview |
P/N |
Name |
Description |
|
MZ201101 |
0.8-5X Micro
Zoom Body |
Micro Zoom Body with 0.8-5X Zoom Range |
|
MZ202101 |
0.3X Coupler |
0.3X, Standard C-mount design, applicable to 1/3" CCD camera, for MZ2 Series Micro Zoom Lens |
| MZ202102 |
0.5X Coupler |
0.5X, Standard C-mount design, applicable to 1/3" CCD camera, for MZ2 Series Micro Zoom Lens |
| MZ202104 |
1X Coupler |
1X, Standard C-mount design, applicable to 1/3" CCD camera, for MZ2 Series Micro Zoom Lens |
| MZ202105 |
1.5X Coupler |
1.5X, Standard C-mount design, applicable to 1/3" CCD camera, for MZ2 Series Micro Zoom Lens |
| MZ202106 |
2X Coupler |
2X, Standard C-mount design, applicable to 1/3" CCD camera, for MZ2 Series Micro Zoom Lens |
|
MZ203102 |
0.5X Objective Lens |
0.5X Optics, W. D. 175mm, for MZ2 Series Micro Zoom Lens. |
| MZ203103 |
0.75X Objective Lens |
0.75X Optics, W. D. 115mm, for MZ2 Series Micro Zoom Lens. |
| MZ203104 |
1X Objective Lens |
1X Optics, W. D. 82mm, for MZ2 Series Micro Zoom Lens. |
| MZ203106 |
2X Objective Lens |
2X Optics, W. D. 35mm, for MZ2 Series Micro Zoom Lens. |
|
MZ203201 |
Adapter For Infinity
Objective Lens |
M26?1/36" standard thread |
|
MZ203202 |
Ring Adapter |
25/34mm Ring Adapter for MZ2 Zoom Lens |
|
MZ205101 |
Coaxial Illuminator |
Coaxial Illuminator for MZ2 Series Micro Zoom Lens |
|
|
