MZ VIDEO ZOOM MICROSCOPE |
|

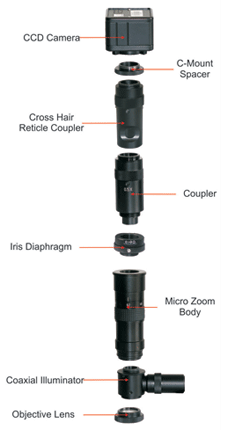

MZ Video Zoom Microscope Diagram
|
รหัส :
ยี่ห้อ :
รุ่น : MZ VIDEO ZOOM MICROSCOPE
รายละเอียดย่อ :
? Full Field of View
? Parallel (infinite) Optical System
? Compact, practical and cost-effective
As the parallel (infinite) optical system is adopted in the MZ Video Zoom Microscope,
it can be used in high precision measurement industry, micro-electronics, automation
monitor and control fields, inspection and testing industry. The coaxial illuminator,
polarized light and iris diaphragm are optional and can be attached to the MZ Video
Zoom Microscope. When the MZ Video Zoom Microscope is attached to the infinity
objectives of a biological microscope or metallurgical microscope, 400X more magnification
can be obtained. Due to the compact structure and the compatibility with different stands
and illuminators, the MZ Video Zoom Microscope is more convenient and cost-effective
for customers.
The zoom body system of MZ Video Zoom Microscope is designed by using four pieces
of glass mechanical compensation structure with high resolution and clear image.
When the manual zoom with detents is used in measuring systems, the magnification
calibration is needed, the pre-set stops are at 0.7X, 1X, 1.5X, 2X, 2.5X, 3X, 3.5X, 4X and 4.5X.
|
|
Optical Datasheet (Based on 14" Monitor and 1/3" CCD Camera)
Objective
Lens |
Working
Distance
(mm) |
Couplers |
| 0.35X |
0.5X |
0.75X |
1.0X |
1.5X |
2.0X |
| Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
| 0.3X |
331 |
4.65X-31X |
77-12 |
6X-41X |
59-9 |
9X-61X |
39-6 |
12X-81X |
29-4 |
18X-121X |
19.6-3 |
24X-162X |
14.7-2 |
| 0.5X |
198 |
7.8X-51X |
46-7 |
10X-68X |
35-5 |
15X-101X |
23.5-4 |
20X-135X |
17.6-3 |
31X-203X |
11.8-2 |
41X-270X |
8.8-1.3 |
| 0.75X? |
131 |
11.6X-77X |
31-4.7 |
15X-101X |
23.5-3.6 |
23X-152X |
15.7-2.4 |
30.6X-202X |
12-1.8 |
46X-304X |
7.8-1.2 |
61X-405X |
6-0.9 |
| 1.0X |
96 |
15.5X-102X |
23-3 |
20X-135X |
17.6-2.7 |
30.6X-202X |
12-1.8 |
41X-270X |
9-1 |
61X-405X |
6-0.9 |
81.6X-540X |
4-0.7 |
| 1.5X |
63 |
23X-154X |
15-2.3 |
31X-203X |
11.8-1.8 |
46X-304X |
7.8-1.2 |
61X-405X |
6-0.9 |
92X-607X |
4-0.6 |
122X-810X |
3-0.4 |
| 2.0X |
46 |
31X-205X |
11.6-1.7 |
41X-270X |
8.8-1.3 |
61X-405X |
6-0.9 |
81.6X-540X |
4-0.7 |
122X-810X |
3-0.4 |
163X-1080X |
2-0.3 |
|
|
|
Application
The design of 1.0X, 1.5X and 2.0X is based on infinite optical system, which reduces the length of the system. All auxiliary lenses and
video couplers are optional and available. The Iris Diaphragm can control the depth of field by adjusting Numerical Aperture for
obtaining a high quality image. Different types of stands and illuminators are available as options.
|
| Picture Preview |
P/N |
Name |
Description |
|
MZ101101 |
0.7-4.5X Micro Zoom Body |
Micro Zoom Body with 0.7-4.5X zoom range |
| MZ101102 |
Micro Zoom Body
with Detents |
Micro Zoom Body with 0.7-4.5X zoom range, the pre-set stops for detents are at 0.7X, 1X, 1.5X, 2X, 2.5X, 3X, 3.5X, 4X and 4.5X. |
|
MZ102101 |
0.35X Coupler |
Standard C-mount design, applicable to 1/3" CCD camera, focus distance 67mm, optical length
approx. 76mm, for MZ Series Micro Zoom Lens. |
| MZ102102 |
0.5X Coupler |
Standard C-mount design, applicable to 1/3" CCD camera, focus distance 90mm, optical length
approx. 97mm, for MZ Series Micro Zoom Lens. |
| MZ102103 |
0.75X Coupler |
Standard C-mount design, applicable to 1/3" CCD camera, focus distance 90mm, optical length
approx. 97mm, for MZ Series Micro Zoom Lens. |
| MZ102104 |
1X Coupler |
Standard C-mount design, applicable to 1/3" CCD camera, focus distance 180mm, optical length
approx. 130mm, for MZ Series Micro Zoom Lens. |
| MZ102105 |
1.5X Coupler |
Standard C-mount design, applicable to 1/3" CCD camera, focus distance 270mm, optical length
approx. 189mm, for MZ Series micro zoom Lens. |
| MZ102106 |
2X Coupler |
Standard C-mount design, applicable to 1/3" CCD camera, focus distance 360mm, optical length
approx. 252mm, for MZ Series Micro Zoom Lens. |
|
MZ103101 |
0.3X Objective Lens |
Semi-plan achromatic design, outside dia. 30mm, working distance 331.5mm, for MZ Series Micro Zoom Lens. |
| MZ103102 |
0.5X Objective Lens |
Semi-plan achromatic design, outside dia. 30mm, working distance 199.1mm, for MZ Series Micro Zoom Lens. |
| MZ103103 |
0.75X Objective Lens |
Semi-plan achromatic design, outside dia. 30mm, working distance 131mm, for MZ Series Micro
Zoom Lens. |
| MZ103104 |
1X Objective Lens |
Semi-plan achromatic design, outside dia. 30mm, working distance 97.3mm, for MZ Series Micro
Zoom Lens. |
| MZ103105 |
1.5X Objective Lens |
Semi-plan achromatic design, outside dia. 30mm, working distance 60.9mm, for MZ Series Micro
Zoom Lens. |
| MZ103106 |
2X Objective Lens |
Semi-plan achromatic design, outside dia. 30mm, working distance 46.3mm, for MZ Series Micro
Zoom Lens. |
|
MZ103201 |
Adapter for Infinity
Objective Lens |
M26?1/36" (55?) standard thread, for attaching to Infinity Long Working Distance Objectives. |
|
MZ104101 |
Iris Diaphragm |
Increases the image of Depth of View or Resolution, for MZ Series Micro Zoom Lens. |
|
MZ105101 |
Coaxial Part of Zoom Lens |
Coaxial Illuminator, for attaching to MZ Series Micro Zoom Lens and Fiber Optic Cable. |
|
MZ106101 |
Cross Hair Reticle Coupler |
The Cross Hair is inside |
| MZ106102 |
Cross Hair Reticle Coupler |
With 10mm/100 Cross Reticle |
| MZ106103 |
Cross Hair Reticle Coupler |
With X Y 10mm/100 Cross Reticle |
|
|
