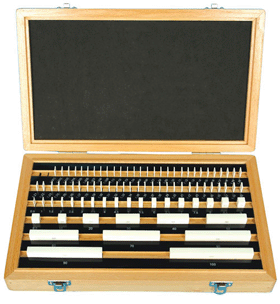

CERAMIC GAGE BLOCKS
Code Total quantity Size (mm) Step (mm)
IS14105-32 32pcs 1.005
1.01 - 1.09 0.01
1.1 - 1.9 0.1
1 - 9 1
10 - 30 10
50
IS14105-47 47pcs 1.005
1.01 - 1.19 0.01
1.2 - 1.9 0.1
1 - 9 1
10 - 100 10
IS14105-87 87pcs 1.001 - 1.009 0.001
1.01 - 1.49 0.01
0.5 - 9.5 0.5
10 - 100 10
IS14105-103 103pcs 1.005
1.01 - 1.49 0.01
0.5 - 24.5 0.5
25 - 100 25
Code Total quantity Size (inch) Step (inch)
IS14106-36 36pcs 0.05
0.1001 - 0.1009 0.0001
0.101 - 0.109 0.001
0.11 - 0.19 0.01
0.1 - 0.5 0.1
1
2
4
IS14106-81 81pcs 0.1001 - 0.1009 0.0001
0.101 - 0.149 0.001
0.05 - 0.95 0.05
1 - 4 1
  • Made of ceramic material, extremely wear-resistant
  • Corrosion resistance, excellent dimension stability
  • With individual certificate
  • Accuracy: metric ISO 3650 or DIN861 grade 0 (grade 1 and 2 are optional), imperial GGG-G-15C grade 2 (grade 3 and B are optional)
  • Packed in wooden box
  •




































    :

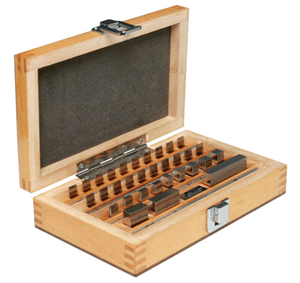

    ISO3650 RECTANGULAR GAGE BLOCKS
    Code Total quantity Size (mm) Step (mm)
    IS14100-5 5pcs 600 - 1000 100
    IS14100-8 8pcs 125 - 175 25
    200 -250 50
    300 - 500 100
    IS14100-10-1 10pcs 0.991- 1.000 0.001
    IS14100-10 10pcs 1.000 - 1.009 0.001
    IS14100-10-2 10pcs 1.991 - 2.000 0.001
    IS14100-10-3 10pcs 2.000 - 2.009 0.001
    IS14100-38 38pcs 1
    1.005
    1.01 - 1.09 0.01
    1.1 - 1.9 0.1
    2 - 9 1
    10 - 100 10
    IS14100-46 46pcs 1
    1.001 - 1.009 0.001
    1.01 - 1.09 0.01
    1.1 - 1.9 0.1
    2 - 9 1
    10 - 100 10
    IS14100-83 83pcs 0.5
    1
    1.005
    1.01 - 1.49 0.01
    1.5 - 1.9 0.1
    2 - 9.5 0.5
    10 - 100 10
    IS14100-91 91pcs 0.5
    1
    1.001 - 1.009 0.001
    1.01- 1.49 0.01
    1.5 - 1.9 0.1
    2 - 9.5 0.5
    10 - 100 10
  • Made of alloy steel (carbide is optional)
  • With individual certificate
  • Meet ISO3650 grade 0 (grade 1 and 2 are optional)
  • Packed in wooden box
  •


































    :

    DIN861 RECTANGULAR GAGE BLOCKS
    Code Total quantity Size (mm) Step (mm)
    IS14101-32 32pcs 1.005
    1.01 - 1.09 0.01
    1.1 - 1.9 0.1
    1 - 9 1
    10 - 30 10
    50
    IS14101-47 47pcs 1.005
    1.01 - 1.19 0.01
    1.2 - 1.9 0.1
    1 - 9 1
    10 - 100 10
    IS14101-76 76pcs 1.005
    1.01 - 1.49 0.01
    0.5 - 9.5 0.5
    10 - 50 10
    75 -100 25
    IS14101-87 87pcs 1.001 - 1.009 0.001
    1.01- 1.49 0.01
    0.5 - 9.5 0.5
    10 - 100 10
    IS14101-103 103pcs 1.005
    1.01 - 1.49 0.01
    0.5 - 24.5 0.5
    25 - 100 25
    IS14101-112 112pcs 0.5
    1
    1.0005
    1.001 - 1.009 0.001
    1.01- 1.49 0.01
    1.5 - 25 0.5
    50-100 25
  • Made of alloy steel (carbide is optional)
  • With individual certificate
  • Meet DIN861 grade 0 (grade 1 and 2 are optional)
  • Packed in wooden box
  •


















    :

    IMPERIAL RECTANGULAR GAGE BLOCKS
    Code Total quantity Size (inch) Step (inch)
    IS14102-36 36pcs 0.05
    0.1001 - 0.1009 0.0001
    0.101- 0.109 0.001
    0.11 - 0.19 0.01
    0.1 - 0.5 0.1
    1
    2
    4
    IS14102-81 81pcs 0.1001 - 0.1009 0.0001
    0.101 - 0.149 0.01
    0.05 - 0.95 0.05
    1 - 4 1
  • Made of alloy steel (carbide is optional)
  • With individual certificate
  • Meet GGG-G-15C grade 2 (grade 3 and B are optional)
  • Packed in wooden box
  •


























    :

    Imperial Round Gage Blocks
    Code Total quantity Size (inch) Step (inch)
    IS14103-36 36pcs 0.050 - 0.190 0.01
    0.101- 0.109 0.001
    0.200 - 1 0.1
    0.625
    0.125
    1
  • Accuracy +/-0.0001" (+/-0.00005" is optional)
  • With threaded hole in each block
  • 4 connecting screws and 1 wrench are included
  • Made of alloy steel
  • Packed in wooden box
  •












    :

    GAGE BLOCKS FOR MICROMETER INSPECTION
    Code Total quantity Size(mm) For micrometer
    IS14104-10-1 10pcs 2.5, 5.1, 7.7, 10.3,
    12.9, 15, 17.6, 20.2,
    22.8, 25
    0-25mm
    IS14104-10-2 10pcs 27.5, 30.1, 32.7,
    35.3, 37.9, 40, 42.6,
    45.2, 47.8, 50
    25-50mm
    IS14104-10-3 10pcs 52.5, 55.1, 57.7,
    60.3, 62.9, 65, 67.6,
    70.2, 72.8, 75
    50-75mm
    IS14104-10-4 10pcs 77.5, 80.1, 82.7,
    85.3, 87.9, 90, 92.6,
    95.2, 97.8, 100
    75-100mm
  • To check micrometers
  • Made of alloy steel
  • Packed in wooden box
  •














    :

    CERAMIC GAGE BLOCKS FOR MICROMETER INSPECTION
    Code Total quantity Size (mm) For micrometer
    IS14107-10 10pcs 2.5, 5.1, 7.7, 10.3, 12.9, 15, 17.6, 20.2, 22.8, 25 0-25mm
    IS14107-11-1 11pcs 25, 27.5, 30.1, 32.7, 35.3, 37.9, 40, 42.6, 45.2, 47.8, 50 25-50mm
    IS14107-11-2 11pcs 50, 52.5, 55.1, 57.7, 60.3, 62.9, 65, 67.6, 70.2, 72.8, 75 50-75mm
    IS14107-11-3 11pcs 75, 77.5, 80.1, 82.7, 85.3, 87.9, 90, 92.6, 95.2, 97.8, 100 75-100mm
  • Code IS14107-10 is supplied with one piece of optical flat to check flatness
  • Made of ceramic material, extremely wear-resistant
  • Corrosion resistance, excellent dimension stability
  • Packed in wooden box
  •
















    :

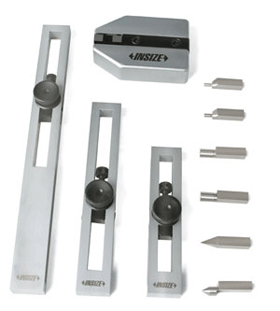

    GAGE BlOCK ACCESSORY
    Code Total quantity
    IS16881-1 16pcs
    IS16881-2 15pcs
    IS16881-3 10pcs
    IS16881-1 IS16881-2 IS16881-3
    Including:
    holder 50mm 1pc. 1pc. 1pc.
    holder 100mm 1pc. 1pc. 1pc.
    holder 200mm 1pc. 1pc. 1pc.
    holder base 25mm 1pc. 1pc.
    half round jaw 2mm 2pcs 2pcs 2pcs
    half round jaw 5mm 2pcs 2pcs 2pcs
    half round jaw 10mm 2pcs 2pcs
    plain jaw 100mm 2pcs 2pcs
    scriber point 1pc. 1pc. 1pc.
    center point 1pc. 1pc. 1pc.
    triangular straight edge jaw 60mm 2pcs 2pcs
  • To expand rectangular gage block applications
  • Packed in wooden box
  •
